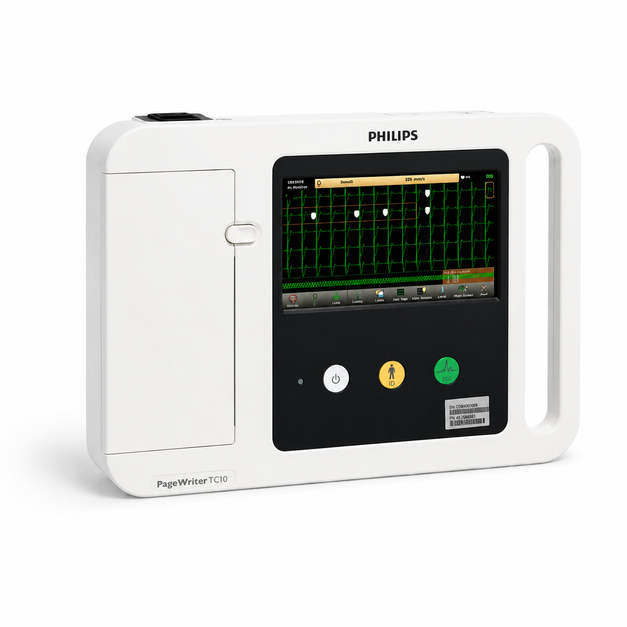

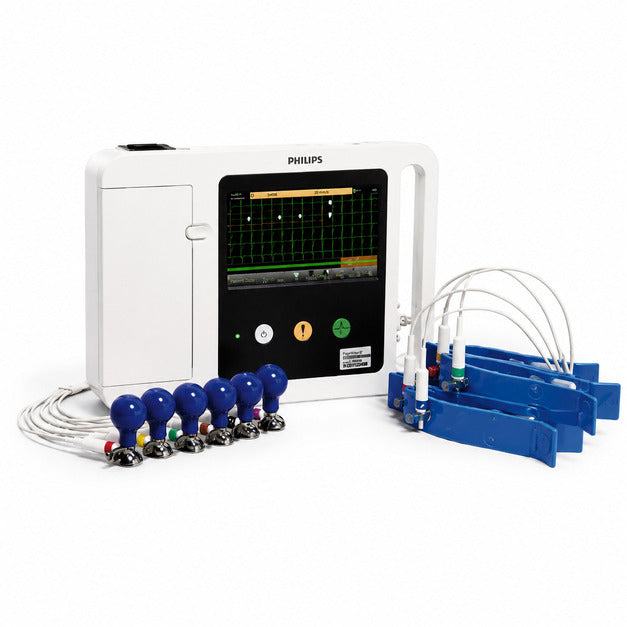

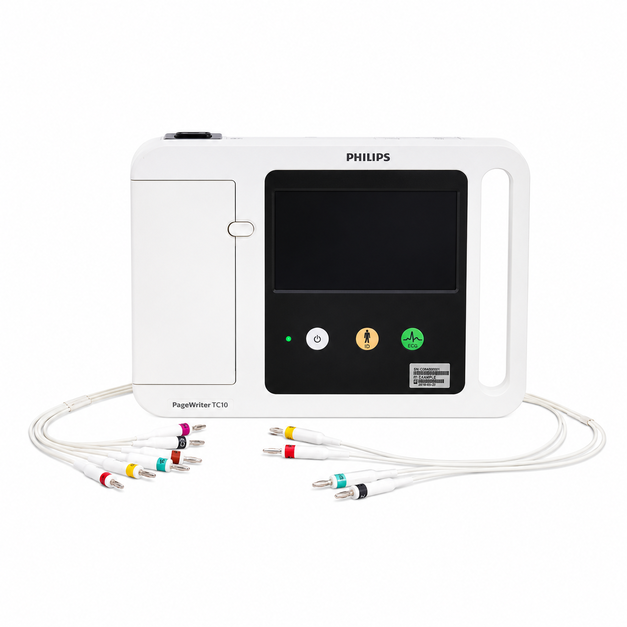

Philips Page Writer TC10 12 Channel Portable ECG Machine | Advanced Digital ECG System
The Philips PageWriter TC10 12 Channel Portable ECG Machine is an advanced digital electrocardiograph designed to provide fast, accurate, and reliable cardiac diagnostics in hospitals, clinics, diagnostic centers, emergency departments, and mobile healthcare settings. Equipped with simultaneous 12-lead ECG acquisition, the industry-leading Philips DXL ECG Interpretation Algorithm, and an intuitive 7-inch touchscreen display, this ECG system streamlines workflow while delivering exceptional diagnostic accuracy.
Built for modern healthcare environments, the PageWriter TC10 combines high-resolution ECG recording, wireless connectivity, intelligent patient management, and seamless integration with hospital information systems. Its lightweight portable design, long-lasting battery, and automated workflow make it an ideal solution for cardiologists, physicians, and healthcare professionals who require dependable ECG performance.
At Health Yantra Store, we offer genuine Philips medical equipment backed by manufacturer warranty, ensuring trusted quality and dependable after-sales support.
Key Features
-
Simultaneous 12-Lead ECG Acquisition
- Records all 12 ECG leads simultaneously for comprehensive and accurate cardiac assessment.
-
7-inch Color Touchscreen Display
- Intuitive 1-2-3 touchscreen interface simplifies ECG recording, patient entry, and report review.
-
Philips DXL ECG Interpretation Algorithm
- Advanced clinical algorithm delivers precise ECG measurements and automated diagnostic interpretation.
-
Wireless LAN Connectivity
- Supports secure wireless communication using DICOM, HL7, XML, and hospital network integration.
-
Automated Clinical Workflow
- One-touch ECG acquisition with patient worklist download and direct report transfer to HIS, EMR, and PACS systems.
-
High-Fidelity Digital ECG Recording
- Captures ECG signals at 8,000 samples per second for outstanding waveform accuracy.
-
Integrated Pediatric ECG Analysis
- Includes pediatric interpretation with more than 600 automated diagnostic statements.
-
Portable Lightweight Design
- Compact 2.5 kg design makes bedside monitoring and transport between departments easy.
-
Extended Battery Backup
- Rechargeable lithium-ion battery provides up to 10 hours of operation or approximately 300 ECG recordings per charge.
Benefits of the Philips PageWriter TC10 ECG Machine
- Improves hospital workflow through automated patient management.
- Provides highly accurate ECG interpretation using Philips DXL technology.
- Supports wireless data sharing across hospital networks.
- Reduces reporting errors with intelligent lead placement guidance.
- Long battery life enables uninterrupted bedside and emergency use.
- Compact design allows easy transport between departments.
- Supports pediatric and adult ECG diagnostics.
- Ideal for hospitals, cardiology departments, emergency rooms, ICUs, diagnostic centers, and clinics.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 12 Channel Portable ECG Machine |
| Brand | Philips |
| Model | PageWriter TC10 |
| Display | 7-inch Color Touchscreen (800 × 480 Resolution) |
| ECG Acquisition | Simultaneous 12 Leads |
| Sampling Rate | 8000 Samples/Second |
| ECG Interpretation | Philips DXL Algorithm |
| Printer | High-Resolution Thermal Printer (200 × 500 dpi) |
| Internal Storage | Up to 200 ECG Records |
| External Storage | Additional 200 ECGs via USB |

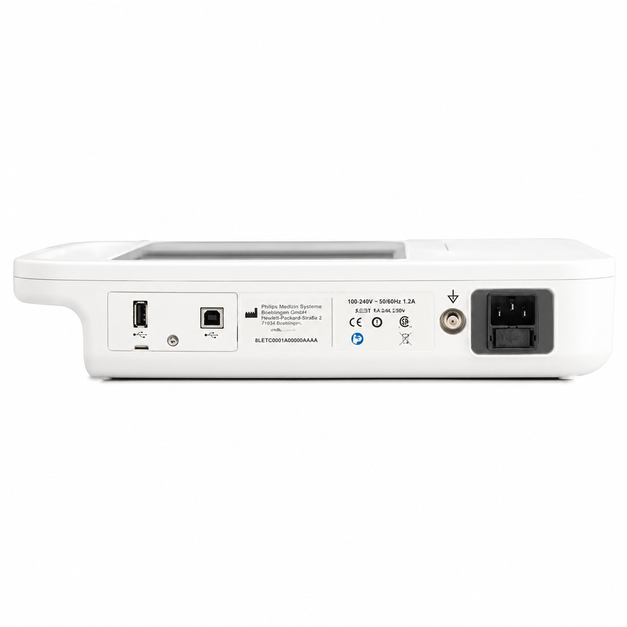

| Connectivity | Wireless LAN, USB, DICOM, HL7, XML |
| Battery | Lithium-ion 11.1V, 4800 mAh |
| Battery Backup | Up to 10 Hours or 300 ECG Reports |
| Power Supply | 100–240V AC, 50/60Hz |
| Weight | Approx. 2.5 kg |
| Operating Temperature | 10°C to 40°C |
Box Contents
Your package includes:
- Philips PageWriter TC10 ECG Machine
- Rechargeable Battery (Pre-installed)
- 12-Lead Patient Cable Set
- Alligator Clip & Adapter Set
- ECG Electrodes
- Power Supply Adapter
- ECG Thermal Paper
- User Manual
- Quick Reference Guide
Warranty
The Philips PageWriter TC10 12 Channel Portable ECG Machine comes with a 1-year manufacturer warranty, ensuring dependable product quality and reliable after-sales support.
