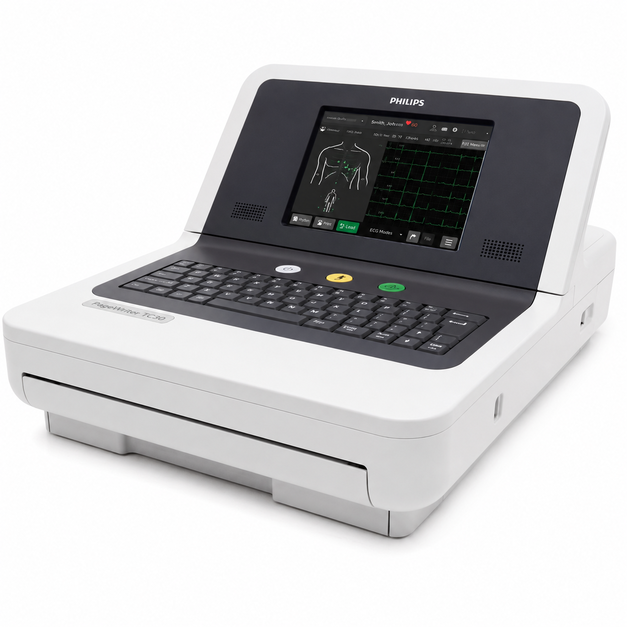

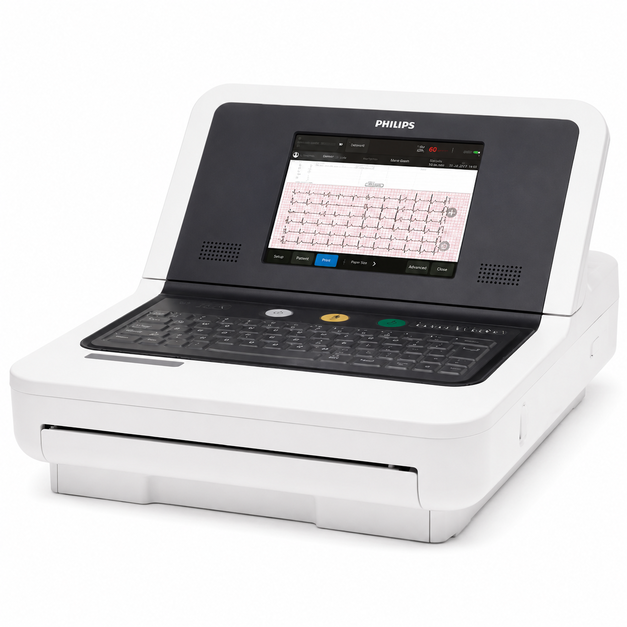

Philips Page Writer TC35 12 Channel ECG Machine Advanced Digital ECG System
The Philips PageWriter TC35 12 Channel ECG Machine is a premium digital electrocardiograph engineered for fast, accurate, and reliable cardiac diagnostics in hospitals, cardiac care units, outpatient clinics, emergency departments, and diagnostic centers. Equipped with simultaneous 12-lead ECG acquisition, the advanced Philips DXL ECG Interpretation Algorithm, and an intuitive 6.5-inch TFT color display, this ECG system helps healthcare professionals perform comprehensive cardiac assessments with confidence.
Designed to streamline clinical workflows, the PageWriter TC35 combines intelligent ECG interpretation, advanced connectivity, DICOM integration, and long battery life in a compact, portable design. Its seamless integration with hospital information systems and outstanding diagnostic capabilities make it an excellent choice for modern healthcare facilities.
At Health Yantra Store, we provide genuine Philips medical equipment backed by manufacturer warranty, ensuring trusted quality and dependable after-sales support.
Key Features
-
Simultaneous 12-Lead ECG Acquisition
- Records all 12 ECG leads simultaneously for complete and accurate cardiac evaluation.
-
Philips DXL ECG Interpretation Algorithm
- Advanced ECG analysis with over 600 automated interpretive statements, including pediatric analysis and pacemaker pulse detection.
-
6.5-inch Color TFT Display
- Bright, high-resolution touchscreen with an intuitive 1-2-3 workflow for faster ECG acquisition and review.
-
Advanced Network Connectivity
- Supports LAN and Wi-Fi (802.11 b/a/g/n/ac) with WPA2/WPA3 security for secure hospital networking.
-
DICOM & HL7 Integration
- Native support for DICOM ECG, HL7, PACS, EMR, HIS, and VNA systems simplifies digital workflow and patient record management.
-
High-Resolution Thermal Printer
- Produces clear ECG reports at 200 × 500 dpi for accurate documentation.
-
Long Battery Backup
- Rechargeable lithium-ion battery delivers up to 13.9 hours of normal operation or approximately 10 hours of continuous use.
-
Lead Quality Monitoring
- Color-coded lead quality indicators and LeadCheck technology help reduce recording errors and repeat examinations.
-
Compact Portable Design
- Lightweight construction makes it suitable for bedside monitoring, mobile healthcare, and emergency applications.
Benefits of the Philips PageWriter TC35 ECG Machine
- Improves workflow through rapid ECG acquisition and automated reporting.
- Provides highly accurate cardiac interpretation using Philips DXL technology.
- Integrates seamlessly with hospital EMR, PACS, and HIS systems.
- Reduces repeat ECGs using intelligent lead-quality monitoring.
- Supports pediatric, adult, and pacemaker patient assessments.
- Long battery life enables uninterrupted bedside and emergency operation.
- Portable design allows flexible deployment across hospital departments.
- Ideal for hospitals, cardiology departments, ICUs, emergency rooms, and diagnostic centers.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Philips PageWriter TC35 12 Channel ECG Machine |
| Brand | Philips |
| Model | PageWriter TC35 |
| ECG Leads | Simultaneous 12 Leads |
| ECG Algorithm | Philips DXL ECG Interpretation Algorithm |
| Display | 6.5-inch TFT Color Display (640 × 480 Resolution) |
| Pacemaker Detection | Detects Pulses as Low as 0.02 mV·ms |
| Data Recording | Full Fidelity 1000 Hz for All 12 Leads |
| Internal Storage | Up to 200 ECG Records |
| Connectivity | LAN, Wi-Fi, USB, DICOM, HL7 |
| Export Formats | PDF, XML, DICOM |
| Battery | Rechargeable Lithium-ion |
| Battery Backup | Up to 13.9 Hours Normal Operation |
| Recharge Time | Approx. 4 Hours |
| Weight | Approx. 8.6 kg |
| Dimensions | Approx. 31 × 40 × 21 cm |
| Operating Temperature | 10°C to 40°C |
Box Contents
Your package includes:
- Philips PageWriter TC35 ECG Machine
- Rechargeable Battery

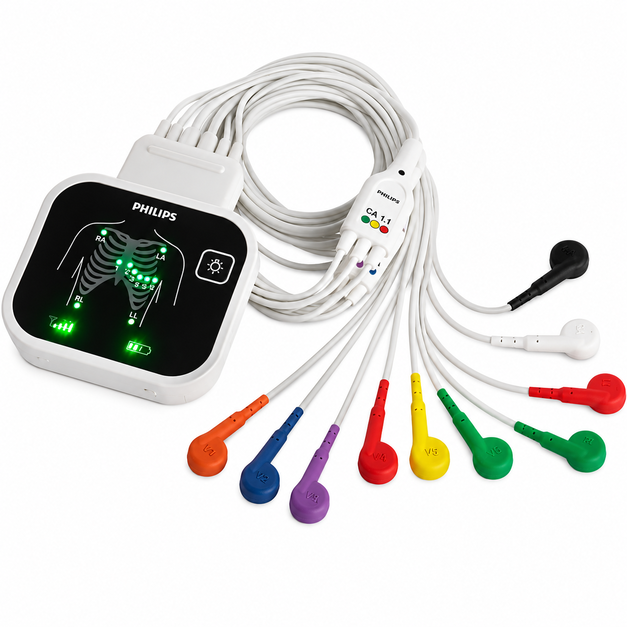

- Standard 12-Lead Patient Cable
- Electrode Clips / Adaptors
- Thermal ECG Paper Roll
- Power Cord
- User Manual
- Warranty Card
- Setup Software (if applicable)
- Barcode Scanner (Optional, if ordered)
Warranty
The Philips PageWriter TC35 12 Channel ECG Machine comes with a 1-year manufacturer warranty, ensuring dependable product quality and reliable after-sales support.
