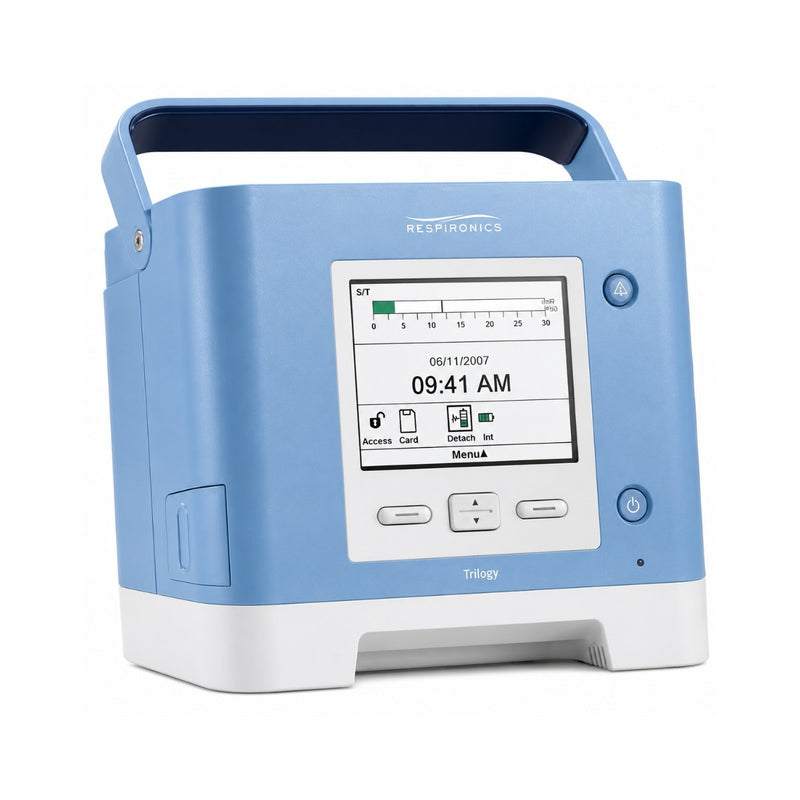

The Refurbished Philips Respironics Trilogy 202 Ventilator is a versatile and portable respiratory-support device designed to provide both invasive and non-invasive ventilation for adult and pediatric patients weighing at least 5 kg.
The Trilogy 202 combines volume- and pressure-control ventilation with an integrated oxygen blending module, automatic leak compensation, flexible breathing-circuit options and internal battery backup. These features make it suitable for healthcare environments where flexible respiratory support and portability are important.
The ventilator supports multiple ventilation modes, including Volume Control AC, SIMV and CV, along with pressure-control modes such as CPAP, S, S/T, T and PC-SIMV.
Its integrated oxygen blender supports direct FiO₂ delivery from 21% to 100%, while automatic leak compensation can detect and compensate for mask or circuit leaks up to 200 L/min, according to the supplied specifications.
As a refurbished Philips Respironics Trilogy 202 ventilator, the exact condition, configuration, battery capacity, oxygen-blender functionality, breathing circuits, accessories and functional/calibration status should be confirmed before procurement and clinical use.
✅ Key Features
- ✅ Refurbished Philips Respironics Trilogy 202 Ventilator
- ✅ Portable Respiratory Ventilator
- ✅ Supports Invasive Ventilation
- ✅ Supports Non-Invasive Ventilation (NIV)
- ✅ Suitable for Adult & Pediatric Patients
- ✅ Patient Weight ≥ 5 kg
- ✅ Integrated Oxygen Blending Module
- ✅ FiO₂ Range of 21%–100%
- ✅ Volume Control Ventilation
- ✅ Pressure Control Ventilation
- ✅ AC Mode
- ✅ SIMV Mode
- ✅ CV Mode
- ✅ CPAP Mode
- ✅ S Mode
- ✅ S/T Mode
- ✅ T Mode
- ✅ PC-SIMV Mode
- ✅ Optional Detachable 3-Hour Backup Battery
- ✅ Pressure Support Up to 30 cmH₂O
Ventilation Modes
The Philips Respironics Trilogy 202 refurbished ventilator provides both volume-control and pressure-control ventilation modes.
Volume Control Modes
- AC – Assist/Control
- SIMV – Synchronized Intermittent Mandatory Ventilation
- CV – Controlled Ventilation
Pressure Control Modes
- CPAP – Continuous Positive Airway Pressure
- S – Spontaneous
- S/T – Spontaneous/Timed
- T – Timed
- PC-SIMV – Pressure-Controlled SIMV
The exact available functions should be verified against the configuration of the refurbished unit.
Data Management
The ventilator supports SD card data logging, allowing therapy information to be recorded for review.
The supplied information identifies compatibility with DirectView software for therapy-data review.
Technical Specifications
| Specification |
Details |
| Product Name |
Philips Respironics Trilogy 202 Ventilator |
| Condition |
Refurbished |
| Device Type |
Portable Medical Ventilator |
| Patient Type |
Adult & Pediatric |
| Minimum Patient Weight |
≥ 5 kg |
| Ventilation |
Invasive & Non-Invasive |
| Volume Control Modes |
AC, SIMV, CV |
| Pressure Control Modes |
CPAP, S, S/T, T, PC-SIMV |
| Tidal Volume |
0–2000 mL |
| Respiratory Rate |
0–80 BPM |
| Peak Inspiratory Flow |
Up to 200 L/min |
| Pressure Support |
0–30 cmH₂O |
| Oxygen Blending |
Integrated |
| FiO₂ Range |
21%–100% |
| Oxygen Supply |
50 psi |
| Leak Compensation |
Up to 200 L/min |
| Breathing Circuits |
Active & Passive |
| Internal Battery |
Lithium-Ion |
| Internal Battery Backup |
Approx. 3 Hours |
| Optional Backup Battery |
Approx. 3 Hours |
| Data Storage |
SD Card |
| Data Review |
DirectView Software |
| Weight |
Approx. 12 lbs |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
