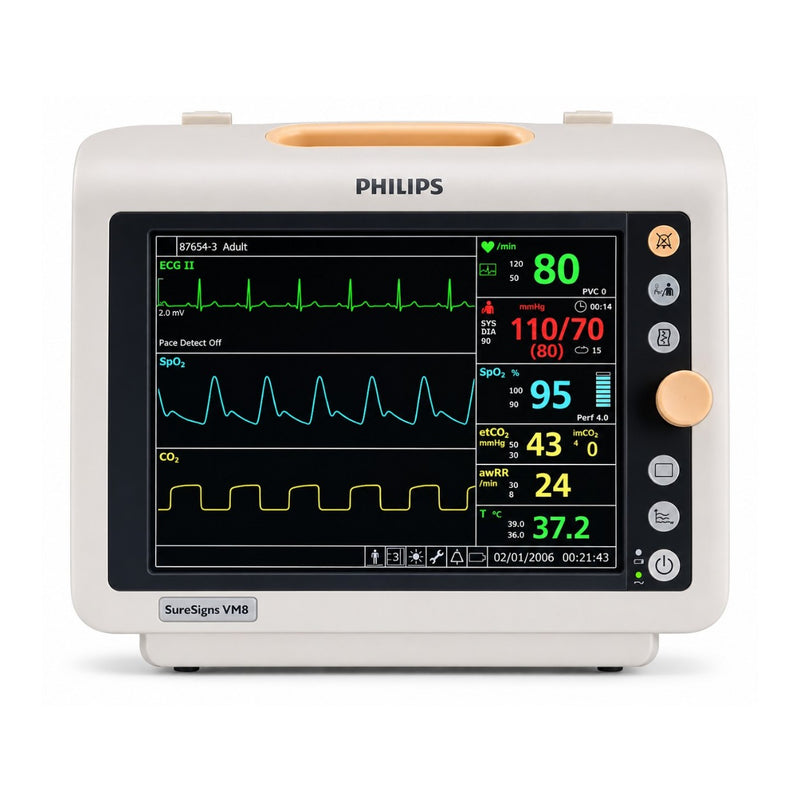

The Philips SureSigns VM8 is a compact multi-parameter patient monitor designed for monitoring adult, pediatric, and neonatal patients in bedside and transport settings. Weighing approximately 8.2 lb, the VM8 combines a 10.4-inch color display, approximately 4 hours of Lithium-ion battery operation, and up to 96 hours of trend storage in a portable monitoring platform.
The monitor supports ECG, SpO₂, non-invasive blood pressure, respiration, and optional temperature monitoring. Additional options include Microstream EtCO₂, an integrated strip recorder, and barcode scanner support.
✅ Key Features
- Compact and portable multi-parameter patient monitor
- Approximately 8.2 lb weight
- 10.4-inch TFT color SVGA display
- Displays up to 4 simultaneous waveforms
- Suitable for adult, pediatric, and neonatal patients
- 3-lead or 5-lead ECG monitoring
- Basic arrhythmia detection
- Pacemaker detection
- Philips SpO₂ technology
- Compatible with Masimo or Nellcor sensors
- Manual, automatic interval, and STAT NBP modes
- Respiration-rate monitoring
- Optional core temperature monitoring
- Optional Microstream EtCO₂
- Optional integrated thermal strip recorder
- Optional handheld barcode scanner
- Approximately 4-hour Lithium-ion battery
- Up to 96 hours of trend storage
- USB connectivity for software updates and system transfers
10.4-Inch Color Display
The SureSigns VM8 features a 10.4-inch TFT color SVGA display designed for clear bedside and transport monitoring.
The display can show up to four simultaneous waveforms, allowing multiple physiological parameters to be viewed together.
ECG Monitoring
The VM8 supports ECG monitoring using:
- 3-lead configuration
- 5-lead configuration
- Basic arrhythmia detection
- Pacemaker detection
The ECG function provides continuous cardiac waveform and heart-rate monitoring for appropriate clinical applications.
SpO₂ Monitoring
The monitor provides pulse oximetry (SpO₂) using Philips technology.
The supplied configuration supports compatibility with:
- Masimo sensors
- Nellcor sensors
The appropriate sensor and configuration should be confirmed for the particular unit.
Non-Invasive Blood Pressure
The SureSigns VM8 provides NBP/NIBP monitoring through cuff-based measurement.
Available measurement modes include:
- Manual
- Automatic interval
- STAT rapid-read
This allows clinicians to perform routine intermittent measurements as well as rapid blood-pressure assessment when required.
Respiration & Temperature
The VM8 monitors respiration rate and can support optional core temperature monitoring inputs.
This expands the monitor's capabilities beyond basic ECG, SpO₂, and blood-pressure monitoring.
Optional Microstream EtCO₂
The VM8 can be configured with Microstream EtCO₂ capnography.
The optional capnography function can provide expired carbon dioxide monitoring for:
- Intubated patients
- Non-intubated patients
EtCO₂ is an optional feature and should be confirmed before purchase.
Optional Integrated Strip Recorder
An optional integrated thermal strip recorder is available for on-demand paper documentation.
This can provide a convenient way to create physical records of selected patient-monitoring information.
Optional Barcode Scanner
The system can support an on-board handheld barcode scanner for patient identification.
This can help streamline patient data entry and identification workflows in clinical environments.
96-Hour Trend Storage
The VM8 provides up to 96 hours of comprehensive measurement trend storage.
Stored trends can help clinicians review changes in monitored parameters over time.
Battery Operation
The monitor incorporates a rechargeable Lithium-ion battery.
The supplied specification indicates approximately 4 hours of battery operation.
Battery runtime can vary according to battery condition and operating configuration.
USB Connectivity
The VM8 includes a USB port for supported software updates and system transfers.
The exact functionality of USB connectivity can depend on the system configuration.
Technical Specifications
| Specification |
Details |
| Brand |
Philips |
| Product |
SureSigns VM8 |
| Equipment Type |
Multi-Parameter Vital Signs Monitor |
| Approx. Weight |
8.2 lb |
| Display |
10.4-inch TFT Color SVGA |
| Waveform Display |
Up to 4 simultaneous waveforms |
| Patient Categories |
Adult, Pediatric, Neonatal |
| ECG |
3-lead / 5-lead |
| ECG Features |
Basic arrhythmia and pacemaker detection |
| SpO₂ |
Philips technology |
| SpO₂ Sensor Compatibility |
Masimo / Nellcor |
| NBP/NIBP |
Manual, automatic interval, STAT |
| Respiration |
Respiration-rate monitoring |
| Temperature |
Optional core temperature |
| EtCO₂ |
Optional Microstream |
| Recorder |
Optional integrated thermal strip recorder |
| Barcode Scanner |
Optional |
| Trend Storage |
Up to 96 hours |
| Battery |
Rechargeable Lithium-ion |
| Battery Operation |
Approximately 4 hours |
| Connectivity |
USB |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
