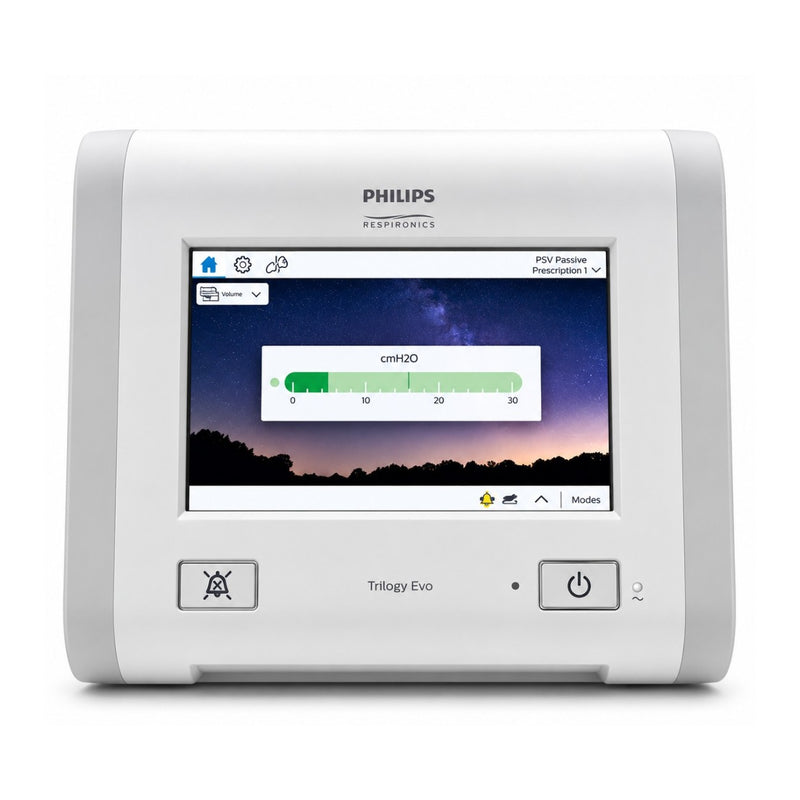

The Refurbished Philips Trilogy Evo is a portable mechanical ventilator designed to provide invasive and noninvasive respiratory support for adult and pediatric patients weighing 2.5 kg or more. It is designed to support continuity of respiratory care across hospital, transport, and home environments.
The Trilogy Evo supports volume- and pressure-based ventilation, advanced ventilation algorithms, flexible circuit configurations, integrated monitoring, and extended battery operation.
Key Features
-
Brand: Philips
-
Model: Trilogy Evo
-
Condition: Refurbished
- Portable mechanical ventilator
- Adult and pediatric patient support
- Suitable for patients weighing 2.5 kg and above
- Invasive and noninvasive ventilation
- Volume and pressure ventilation modes
-
AVAPS-AE advanced ventilation algorithm
-
Digital Auto-Trak technology
- Passive, active PAP, active flow, and dual-limb circuit compatibility
- Leak compensation
- 8-inch touchscreen display
- On-screen help and alarm guidance
- SpO₂ monitoring
- EtCO₂ monitoring
- FiO₂ monitoring
- Pulse-rate monitoring
- Respiratory-rate monitoring
- Up to 15 hours combined battery backup
- Internal and detachable external accessory battery options
- Low-pressure oxygen connection
- Portable design for hospital-to-home respiratory care
Product Description
The Philips Trilogy Evo ventilator is designed to provide flexible respiratory support for patients requiring either invasive or noninvasive ventilation. Its portable form factor allows respiratory care to continue across different healthcare environments.
The system combines multiple ventilation modes with automated technologies such as AVAPS-AE and Digital Auto-Trak, while supporting different circuit configurations according to the selected setup.
The 8-inch touchscreen interface provides access to ventilation controls, monitoring information, on-screen assistance, and alarm guidance.
Ventilation Modes & Technologies
Volume and Pressure Ventilation
The Trilogy Evo supports both volume-based and pressure-based ventilation, allowing the device to be configured according to the prescribed respiratory support strategy.
Circuit Flexibility
The Philips Trilogy Evo supports multiple circuit configurations, providing flexibility for different clinical applications.
Supported configurations include:
- Passive circuits
- Active PAP circuits
- Active flow circuits
- Dual-limb circuits
- Leak-compensated ventilation
The exact circuit and accessories required depend on the selected ventilation configuration and patient application.
8-Inch Touchscreen Display
The Trilogy Evo features an 8-inch touchscreen display designed to provide access to system controls and patient information.
The interface includes:
- Touchscreen controls
- Ventilation information
- Patient monitoring
- On-screen help
- Alarm guidance
- System information
This provides clinicians and trained caregivers with a centralized interface for operating and monitoring the ventilator.
Monitoring Capabilities
Depending on configuration and connected monitoring accessories, the Trilogy Evo can monitor respiratory and physiological parameters including:
| Monitoring Parameter |
Availability |
| SpO₂ |
Supported |
| EtCO₂ |
Supported |
| FiO₂ |
Supported |
| Pulse Rate |
Supported |
| Respiratory Rate |
Supported |
Monitoring capabilities may depend on the specific configuration and connected accessories.
Battery & Power Options
The Trilogy Evo is designed for portable respiratory care and provides multiple power options.
Internal Battery
The ventilator incorporates an internal battery for continued operation when external power is unavailable.
Detachable External Battery
An additional detachable external accessory battery can be used to extend operating time.
The supplied specifications indicate up to 15 hours of combined battery backup using the internal and detachable external battery configuration.
Standard Package Contents
The standard package may include:
- Philips Trilogy Evo ventilator
- AC power cord with clamp
- DC power connector
- Air inlet
- Foam filter
- Low-pressure O₂ connector
- Passive or single-limb patient circuit, depending on configuration
Technical Specifications
| Specification |
Details |
| Brand |
Philips |
| Model |
Trilogy Evo |
| Condition |
Refurbished |
| Equipment Type |
Portable Mechanical Ventilator |
| Patient Type |
Adult & Pediatric |
| Minimum Patient Weight |
2.5 kg or more |
| Ventilation |
Invasive & Noninvasive |
| Ventilation Modes |
Volume & Pressure Modes |
| Advanced Algorithm |
AVAPS-AE |
| Breath Management |
Digital Auto-Trak |
| Circuit Types |
Passive, Active PAP, Active Flow, Dual-Limb |
| Leak Compensation |
Supported |
| Display |
8-inch Touchscreen |
| Monitoring |
SpO₂, EtCO₂, FiO₂, Pulse Rate, Respiratory Rate |
| Battery |
Internal + Detachable External Battery |
| Combined Battery Backup |
Up to 15 hours |
| Oxygen Connection |
Low-Pressure O₂ Connector |
| Air Management |
Air Inlet & Foam Filter |
| Patient Circuit |
Passive or Single-Limb, configuration dependent |
| Application |
Hospital, Transport & Home Respiratory Care |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
