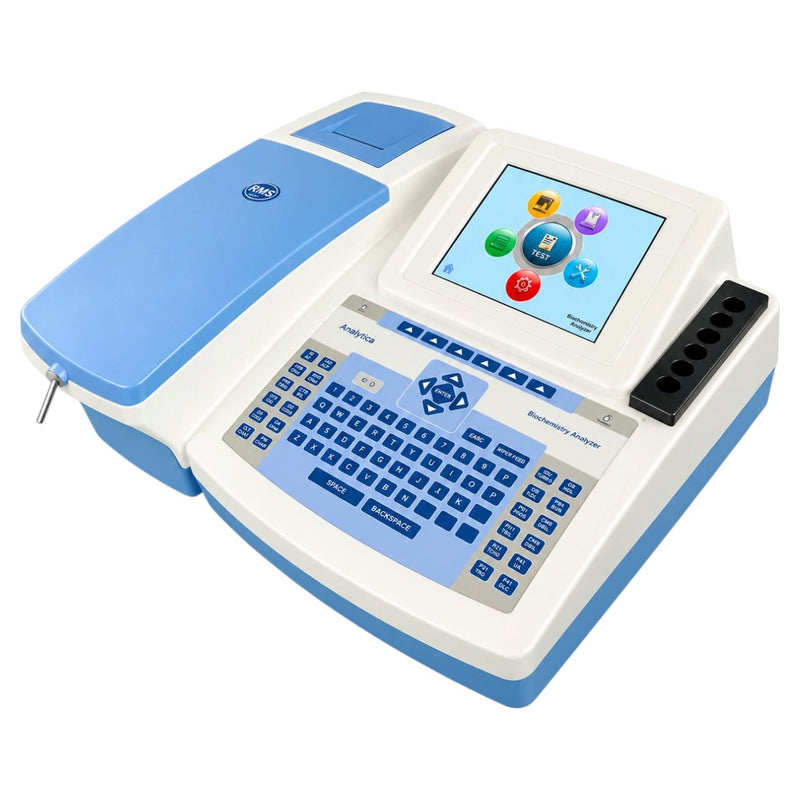

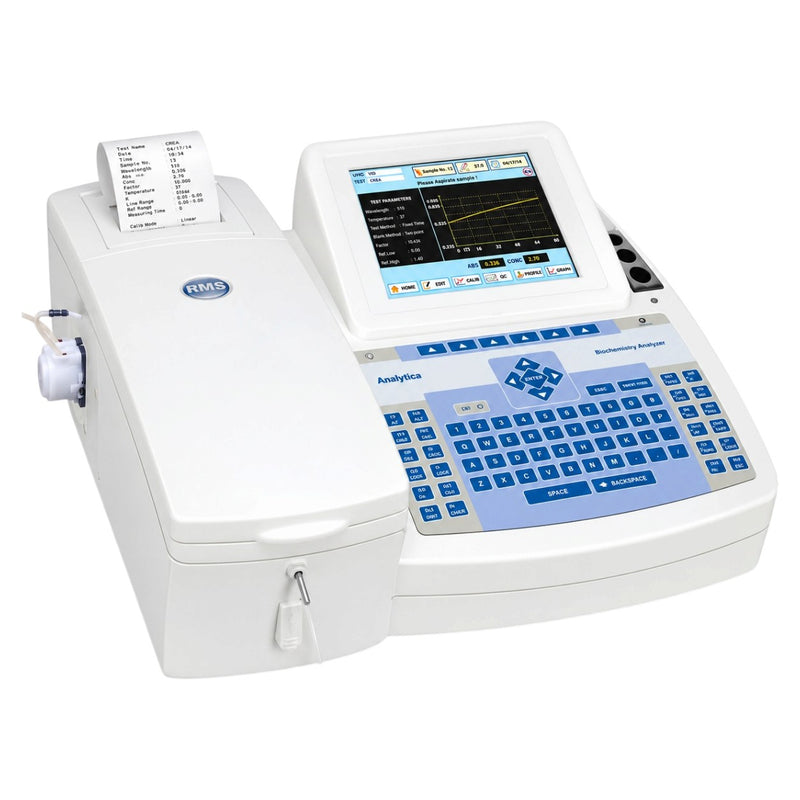

The RMS Analytica 705i Semi-Auto Biochemistry Analyzer is a versatile clinical chemistry laboratory instrument designed for routine biochemical, electrolyte, and immunoturbidimetric testing. Featuring a built-in 6-position dry bath incubator, quartz flowcell, multiple measurement methods, and programmable test settings, it supports a wide range of diagnostic laboratory applications.
The analyzer includes calibration graph storage, quality-control management for three controls per test, reaction-curve display, and a built-in graphical thermal printer. It can store up to 100,000 test results, while optional RS-232 and USB communication and optional LIS and telemedicine connectivity support laboratory data-management workflows.
Key Features of RMS Analytica 705i
-
Semi-automatic biochemistry analyzer: Supports routine clinical chemistry and selected specialized assays.
-
Built-in 6-position dry bath incubator: Provides integrated incubation positions for laboratory workflows.
-
248 programmable tests: Allows programming of a broad range of biochemical assays.
-
48 direct test keys: Provides quick access to frequently used tests.
-
Multiple measurement methods: Supports endpoint, fixed-time, kinetic, bichromatic, and absorbance measurements.
-
Quartz flowcell: Features a 30 µL quartz flowcell.
-
Wide photometric range: Measures from -0.1 to 3.0 absorbance units.
-
High measurement resolution: Resolution of 0.0001 absorbance units.
-
Large data storage: Stores up to 100,000 test results.
-
Built-in thermal printer: Includes a graphical thermal printer for reporting.
Test Menu and Applications
The RMS Analytica 705i supports a broad range of biochemical tests, depending on the selected assay and compatible reagents.
| Test Category |
Tests and Parameters |
| Clinical Chemistry |
Albumin, ALP, Amylase, Bilirubin, Creatinine, Glucose, GGT, HDL-Cholesterol, Lipase, SGOT, SGPT, Total Protein, Urea, Uric Acid, and more |
| Diabetes Profile |
Glucose, Glucose Hexokinase, HbA1c, Microalbumin, Cholesterol |
| Kidney Profile |
BUN, Creatinine, Globulin, Microprotein, Total Protein, Urea, Uric Acid, Urinary Protein |
| Liver Profile |
Aldolase, Albumin, ALP, Acid Phosphatase, Bilirubin, Cholinesterase, GGT, Microalbumin, SGOT, SGPT |
| Lipid Profile |
Apo A, Apo B, Cholesterol, HDL, LDL, Lipoprotein (a), Lipase, Triglyceride, VLDL |
| Cardiac Profile |
CK-MB, CK-NAC, CRP, Cholesterol, LDH, Lipoprotein (a), Triglyceride |
| Electrolytes and Minerals |
Ammonia, Bicarbonate, Calcium, Chloride, Iron, Magnesium, Phosphorus, Potassium, Sodium, Zinc |
| Anaemia-Related Tests |
Hemoglobin, Fe, TIBC, Transferrin, GDH |
| Autoimmune and Turbidimetric Tests |
CRP, IgA, IgG |
| Inflammation Markers |
ASO, CRP |
Technical Specifications
| Specification |
Details |
| Product Name |
RMS Analytica 705i |
| Analyzer Type |
Semi-automatic biochemistry analyzer |
| Sample Types |
Whole blood, serum, plasma, CSF, urine |
| Programmable Tests |
248 |
| Direct Test Keys |
48 |
| Flowcell |
Quartz |
| Flowcell Volume |
30 µL |
| Wavelengths |
340, 405, 505, 546, 578, 620, 670 nm |
| Light Source |
UV quartz halogen lamp, 6 V / 10 W |
| Photodetector |
UV-enhanced silicon photodiode |
| Temperature Settings |
Room temperature, 25°C, 30°C, 37°C |
| Reaction Volume |
350–5000 µL |
| Resolution |
0.0001 Absorbance |
| Measurement Methods |
Endpoint, fixed-time, kinetic, bichromatic, absorbance |
| Calibration |
Automatic calibration with graph storage |
| Quality Control |
3 controls per test with Levey–Jennings graph |
| Dry Bath Incubator |
6 positions |
| Memory |
Up to 100,000 test results |
| Printer |
Built-in graphical thermal printer |
| Communication |
Optional RS-232 and USB |
| LIS Connectivity |
Optional |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
