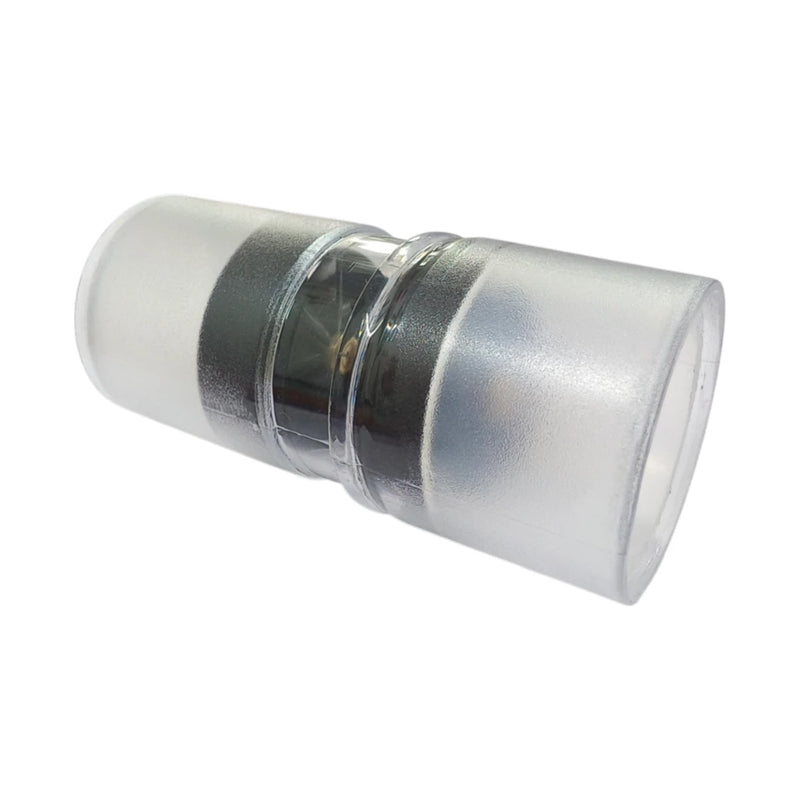

The RMS Bi-Directional Digital Turbine is a detachable airflow transducer designed for compatible RMS pulmonary function testing (PFT) spirometers, including the RMS Helios 401 PC-based Spirometer and RMS Helios 702 Spirometer.
The turbine uses an infrared interruption sensing principle to detect turbine movement and measure airflow in both inspiratory and expiratory directions. The measured airflow information is processed by the connected RMS spirometer for pulmonary function testing and respiratory measurements.
With a specified flow range of -10 to +16 L/sec, maximum volume of 8 litres, and Ā±1% accuracy, the digital turbine is designed for reliable airflow and volume measurement during compatible spirometry tests.
Key Features
-
Bi-Directional Digital Turbine ā Measures both inspiratory and expiratory airflow.
-
Infrared Interruption Sensor ā Detects turbine movement using infrared sensing technology.
-

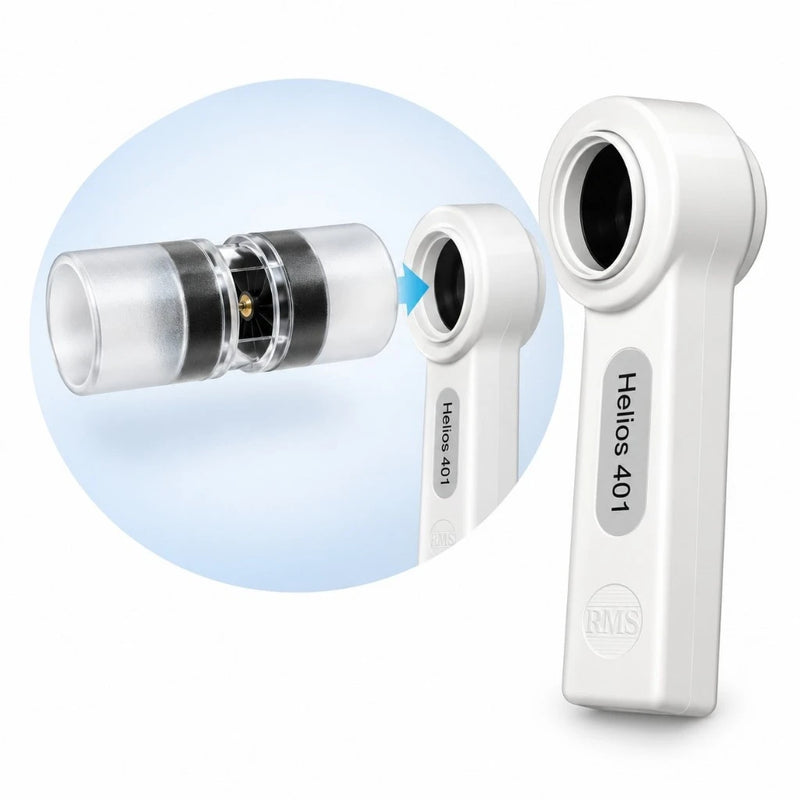

Detachable Turbine Design ā Can be detached from the transducer assembly for cleaning and disinfection.
-
Wide Flow Measurement Range ā Measures airflow from -10 to +16 L/sec.
-
Ā±1% Accuracy ā Designed for accurate airflow measurement.
-
8-Litre Maximum Volume ā Supports a maximum specified measurement volume of 8 L.
-
Volume Differential Detection ā Uses turbine movement and volume differential for airflow detection.
-
PFT Spirometry Application ā Designed for pulmonary function testing applications.
-

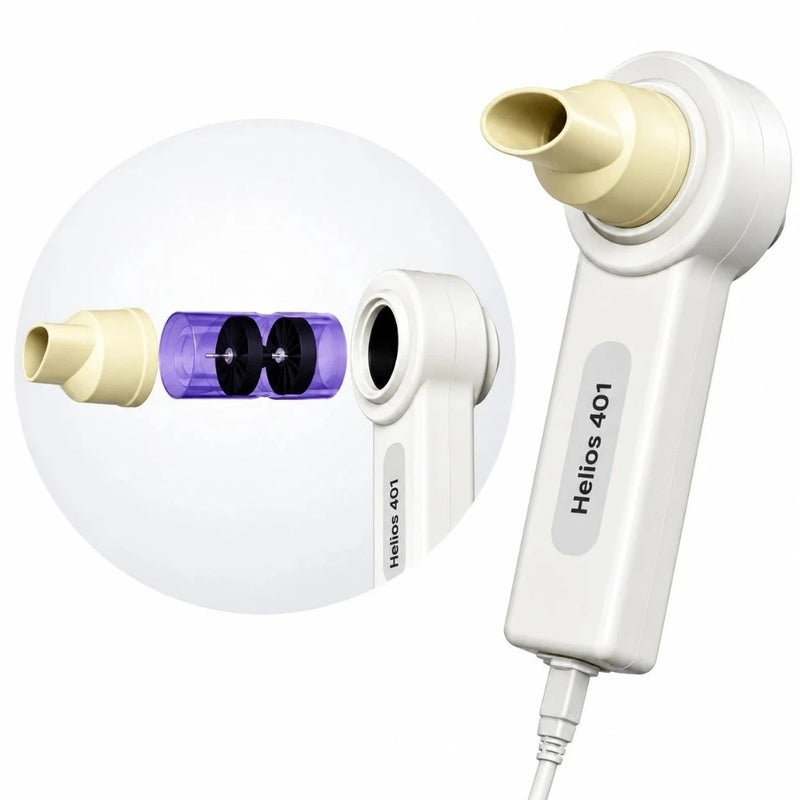

Compatible with RMS Helios 401 ā Suitable for compatible Helios 401 PC-based spirometry systems.
-
Compatible with RMS Helios 702 ā Suitable for compatible Helios 702 spirometers.
-
Easy-to-Handle Transducer ā Detachable design facilitates routine maintenance and hygiene procedures.
-
Replacement Turbine Component ā Suitable as a replacement component for compatible RMS spirometry systems.
Technical Specifications
| Specification |
Details |
| Product Name |
RMS Bi-Directional Digital Turbine |
| Product Type |
Digital Turbine / Airflow Transducer |
| Application |
Pulmonary Function Testing (PFT) / Spirometry |
| Compatible Spirometers |
RMS Helios 401 & RMS Helios 702 |
| Turbine Type |
Bi-Directional |
| Sensor Type |
Infrared Interruption Sensor |
| Flow Detection |
Volume Differential |
| Flow Range |
-10 to +16 L/sec |
| Maximum Volume |
8 Litres |
| Accuracy |
Ā±1% |
| Airflow Direction |
Inspiratory & Expiratory |
| Design |
Detachable Turbine Cartridge |
| Measurement Principle |
Infrared Detection of Turbine Movement |
| Application |
Respiratory Flow & Volume Measurement |
| Brand |
RMS |
| Compatible Models |
Helios 401, Helios 702 |
