The RMS MDX-100/FS Fixed X-Ray Machine is a fixed X-ray imaging system designed for radiography and fluoroscopy applications. It features a 100 mA, 100 kVp rating and an 8 kW X-ray generator, along with an electronic timer and electronic overload protection device.
The system uses a stationary anode X-ray tube available in BEL or imported options and includes a collimator. Its configuration options include a floor-to-ceiling tube stand and a selection of table and positioning arrangements to suit different imaging requirements.
Key Features
-
100 mA, 100 kVp rating: Designed for fixed X-ray imaging applications.
-
8 kW X-ray generator: Generator power rating for the system.
-
Radiography and fluoroscopy: Supports both imaging modalities.
-
Electronic timer: Provides electronic exposure timing.
-
Electronic overload protection: Includes an overload protection device.
-
Stationary anode X-ray tube: Available in BEL or imported options.
-
Collimator: Included for X-ray beam limitation.
-
Floor-to-ceiling tube stand: Tube stand configuration option.
-

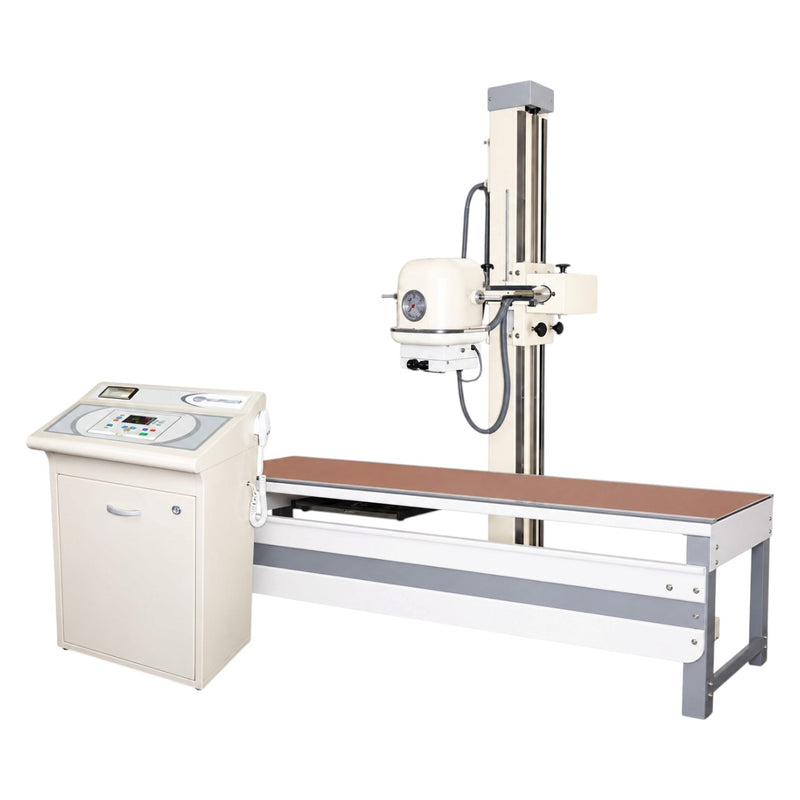

Multiple table configurations: Options include horizontal Bucky, floating-top, and five-position manual tilt tables.
-
Vertical Bucky stand: Available with fluoroscopy facility.
Technical Specifications
| Specification |
Details |
| Brand |
RMS |
| Model |
MDX-100/FS |
| Equipment type |
Fixed X-ray machine |
| X-ray rating |
100 mA, 100 kVp |
| Generator power |
8 kW |
| Imaging applications |
Radiography and fluoroscopy |
| Timer |
Electronic timer |
| Protection |
Electronic overload protection device |
| X-ray tube |
Stationary anode |
| Tube options |
BEL or imported |
| Collimator |
Included |
| Tube stand |
Floor-to-ceiling |
| Table option 1 |
Horizontal Bucky Table (HRT) |
| Table option 2 |
Horizontal Table with Floating Top (HFT) |
| Table option 3 |
5-position Manual Tilt Table (MPT) |
| Additional configuration |
Vertical Bucky stand with fluoroscopy facility |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
