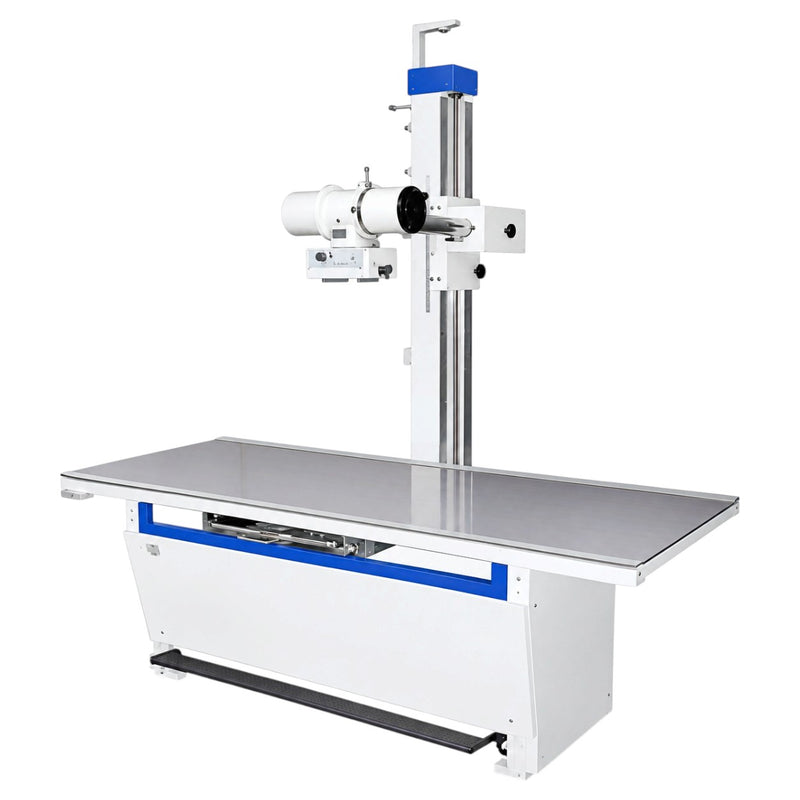

The RMS MDX-300 X-Ray Machine is a fixed X-ray imaging system featuring a 300 mA, 125 kVp rating and a 24 kW X-ray generator. It is designed for radiography-only applications, with radiography and fluoroscopy configurations also available.
The system features an electronic timer, electronic overload protection device, and floor-to-ceiling tube stand. It supports a rotating anode X-ray tube available from BEL or Toshiba and offers manual tilt and motor-driven table configurations. Optional accessories include a vertical Bucky stand, second tube, and IITV system.
Key Features
-
300 mA, 125 kVp rating: Designed for fixed X-ray imaging applications.
-
24 kW X-ray generator: Provides the specified generator power rating.
-
Radiography and fluoroscopy options: Available for radiography-only or combined radiography and fluoroscopy applications.
-
Electronic timer: Supports electronic exposure timing.
-
Electronic overload protection: Includes an overload protection device.
-
Floor-to-ceiling tube stand: Supports the tube stand configuration.
-
Rotating anode X-ray tube: Available from BEL or Toshiba.
-
Multiple table options: Choose between a five-position manual tilt table and a motor-driven table.
-
Optional accessories: Vertical Bucky stand, second tube, and IITV system.
Technical Specifications
| Specification |
Details |
| Brand |
RMS |
| Model |
MDX-300 |
| Equipment type |
X-ray machine |
| X-ray output rating |
300 mA, 125 kVp |
| Generator power |
24 kW |
| Imaging applications |
Radiography only / Radiography + Fluoroscopy |
| Timer |
Electronic timer |
| Protection |
Electronic overload protection device |
| Tube stand |
Floor-to-ceiling |
| Anode type |
Rotating anode |
| X-ray tube options |
BEL or Toshiba |
| Table option 1 |
5-position Manual Tilt Table (MPT) |
| Table option 2 |
Motor-Driven Table (MDT) |
| Optional accessory |
Vertical Bucky stand |
| Optional accessory |
Second X-ray tube |
| Optional accessory |
IITV system |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
