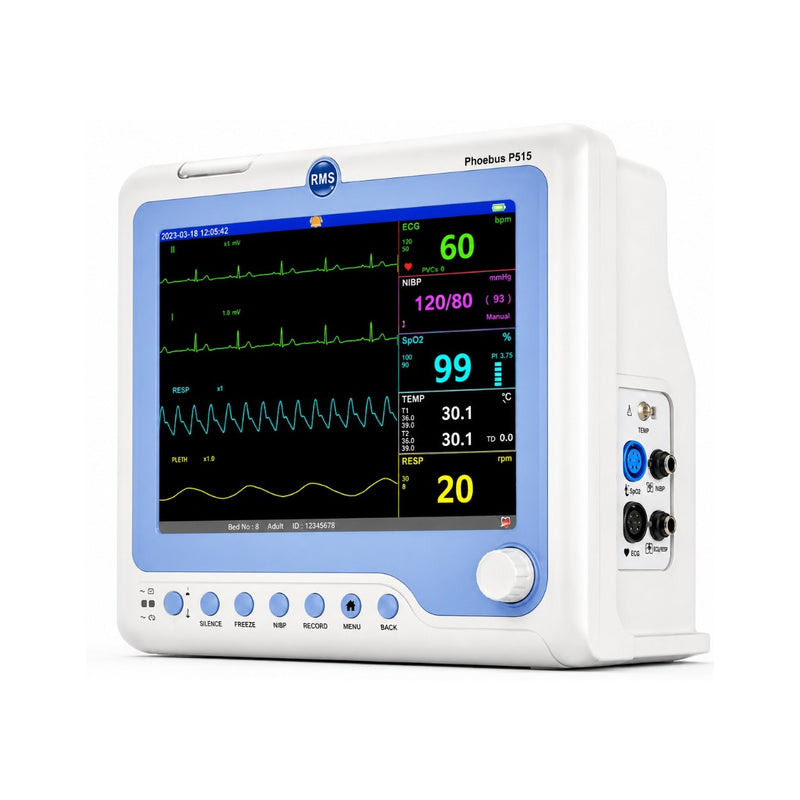

The RMS Phoebus P515 Multipara Patient Monitor is a professional bedside monitoring system designed for continuous monitoring of essential vital signs in ICUs, NICUs, PICUs, operating theatres, emergency departments, and postoperative wards.
With a 12.1-inch high-resolution TFT colour display, the P515 provides clear visualization of ECG waveforms and vital parameters including ECG, SpO₂, NIBP, respiration, temperature, and pulse/heart rate. Its support for adult, pediatric, and neonatal patients makes it a versatile solution for different hospital departments.
The monitor also offers advanced features such as arrhythmia detection, ST-segment analysis, event review, drug dose calculation, and audio-visual alarms. Optional modules for EtCO₂, Dual IBP, Wi-Fi/CMS connectivity, networking, and thermal printing allow the system to be expanded according to clinical requirements.
What Does the RMS Phoebus P515 Monitor?
- ECG
- RESP
- SpO₂
- NIBP
- PR / HR
- Dual-Channel Temperature
Optional Parameters & Features
- Mainstream / Sidestream EtCO₂
- Dual IBP Channels
- Wireless CMS Module
- Ethernet / Wi-Fi Connectivity
- Built-in Thermal Printer
- Networking Capability
- 7-Lead ECG Display Mode
Key Features
- 12.1-inch high-resolution TFT colour display
- Real-time ECG and vital-sign waveform visualization
- ECG, SpO₂, NIBP, RESP, TEMP and PR monitoring
- Adult, pediatric and neonatal support
- Arrhythmia detection
- ST-segment analysis
- Audio, visual and voice alarms
- Defibrillator-protected ECG input
- Multiple display modes
- OxyCRG and ECG Full display options
- Trend and night display modes
- Optional Mainstream and Sidestream EtCO₂
- Optional Dual IBP monitoring
- Optional wireless CMS connectivity
- Optional 50 mm thermal printer
- Rechargeable Li-ion battery
- Compact bedside design
Benefits
-
Versatile Hospital Use: Suitable for ICU, NICU, PICU, OT, emergency and postoperative monitoring.
-
Multi-Patient Support: Designed for adult, pediatric and neonatal applications.
-
Expandable Configuration: Optional EtCO₂, IBP, CMS and printer modules allow the system to be customized.
-
Clear Visualization: The 12.1-inch colour display provides easy viewing of numerical values and waveforms.
-
Advanced Cardiac Monitoring: Arrhythmia detection and ST analysis support continuous cardiac assessment.
-
Reliable Alerts: Audible, visual and voice alarms help notify healthcare professionals of important changes.
-
Portable Design: Compact construction and rechargeable battery support flexible bedside monitoring.
Applications
- Intensive Care Units (ICU)
- Neonatal Intensive Care Units (NICU)
- Pediatric Intensive Care Units (PICU)
- Operating Theatres
- Emergency Departments
- Postoperative Wards
- General Wards
- Critical Care Units
- Hospitals
- Clinics and Healthcare Facilities
Technical Specifications
| Specification |
Details |
| Product Name |
RMS Phoebus P515 Multipara Patient Monitor |
| Product Type |
Multiparameter Patient Monitor |
| Display |
12.1-inch High-Resolution TFT Colour LCD |
| Standard Parameters |
ECG, RESP, SpO₂, NIBP, PR/HR, Temperature |
| Patient Category |
Adult / Pediatric / Neonate |
| Heart Rate Range |
15–300 bpm Adult / 15–350 bpm Neonate |
| ECG Input Impedance |
≥5 MΩ |
| ECG Protection |
Defibrillator Protected |
| Display Modes |
Standard, Large Font, Oxy, ECG Full, Trend, Night |
| Trend Storage |
Up to 20 Days Graphical & Tabular |
| Waveform Review |
Up to 5 Days |
| EtCO₂ |
Optional Mainstream / Sidestream |
| IBP |
Optional Dual-Channel |
| Printer |
Optional 50 mm Thermal Printer |
| CMS Connectivity |
Optional Ethernet / Wi-Fi |
| Battery |
11.1V Li-ion Rechargeable |
| Sidestream Flow Rate |
50 mL/min ±10 mL/min* |
| Dimensions |
330 × 305 × 164 mm |
| Weight |
Approx. 3.6 kg with Battery |
| Touchscreen |
Not Standard; Configuration Dependent |
*Applicable when the optional Sidestream EtCO₂ module is configured.
What's Included
- RMS Phoebus P515 Multipara Patient Monitor
- 5-Lead ECG Cable
- SpO₂ Probe
- Adult NIBP Cuff
- Temperature Probe
- Power Cable
- User Manual
Disclaimer: Content is reviewed by our Biomedical Product Expert and verified against available manufacturer documentation. Specifications may vary by model or batch. Use the equipment strictly as directed by the manufacturer. This information is for general product guidance only and does not replace professional medical advice, diagnosis, or treatment.
