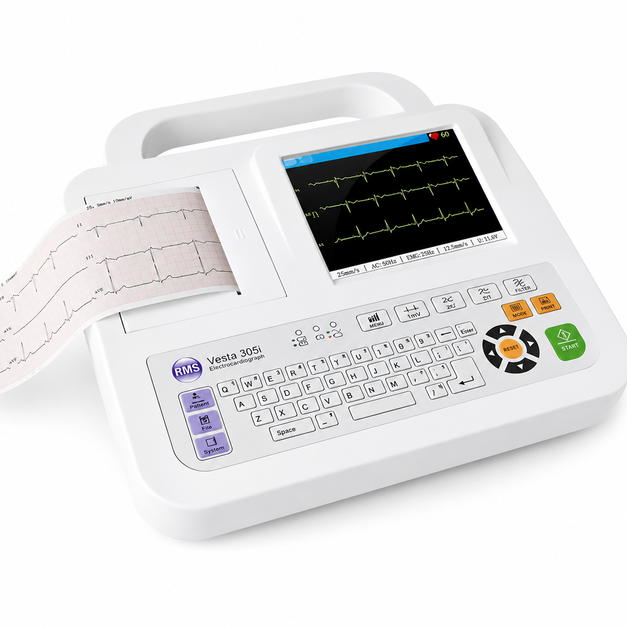

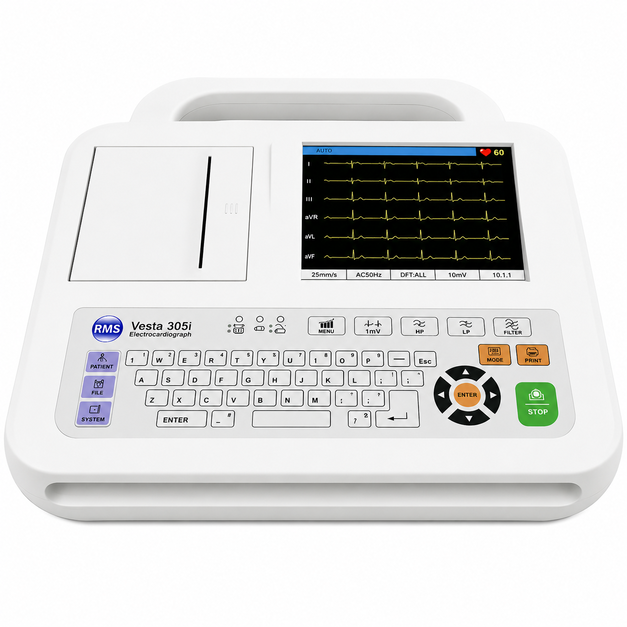

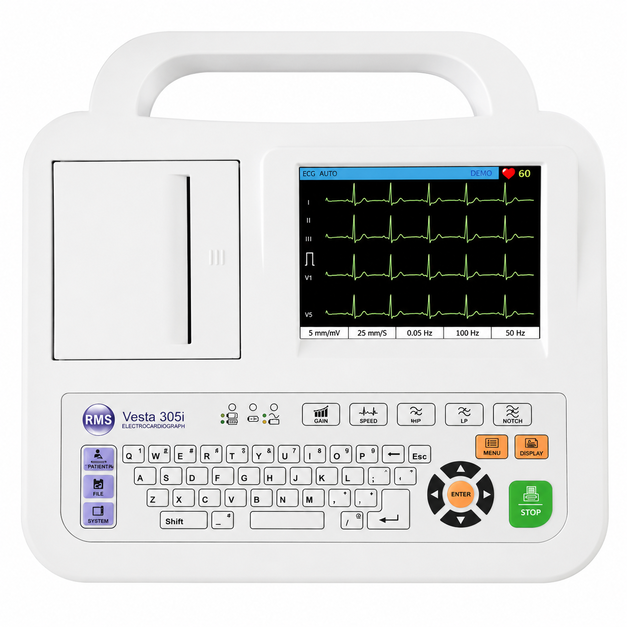

RMS VESTA 305i 3 Channel ECG Machine 12 Lead Digital ECG Machine
TheΒ RMS VESTA 305i 3 Channel ECG Machine is a high-performance digital electrocardiograph designed for fast, accurate, and reliable cardiac diagnostics. Featuring simultaneous 12-lead ECG acquisition, automatic ECG interpretation, a 5.6-inch TFT color display, and advanced digital signal processing, it delivers precise ECG recordings for hospitals, clinics, diagnostic centres, ICUs, emergency departments, and physician practices.
Designed for portability and ease of use, the RMS VESTA 305i offers multiple recording modes, built-in thermal printing, internal storage for up to 500 patient records, and PDF export via USB. Its rechargeable lithium-ion battery enables uninterrupted ECG recording during bedside examinations, ambulance services, and health camps.
Key Features
- β 3 Channel ECG Machine with Simultaneous 12-Lead ECG Acquisition
- β Automatic ECG Interpretation & Arrhythmia Analysis
- β 5.6-inch TFT Color Display
- β Advanced Digital Signal Processing
- β Built-in High-Speed Thermal Printer
- β Auto & Manual Recording Modes
- β Internal Memory for Up to 500 Patient Records
- β USB PDF Export
- β Rechargeable Lithium-Ion Battery
- β Lightweight & Portable Design
- β User-Friendly QWERTY Keyboard
- β Ideal for Hospitals, Clinics, ICUs & Diagnostic Centres
Technical Specifications
| Specification | Details |
|---|---|
| Brand | RMS |
| Model | VESTA 305i |
| Recording Channels | 3 Channel |
| ECG Leads | Standard 12 Leads |
| Display | 5.6-inch TFT Color Display (640 Γ 480) |
| Recording Modes | Auto & Manual |
| Memory | Up to 500 Patient Records |
| Frequency Response | 0.05β150 Hz |
| Input Impedance | >100 MΞ© |
| CMRR | 100 dB |
| Sensitivity | 2.5 / 5 / 10 / 20 mm/mV |
| Filters | Low Pass, High Pass & 50/60 Hz Notch Filter |
| Printer | Built-in Thermal Printer |
| Paper Type | 80 mm Thermal Roll |
| Connectivity | USB |
| Battery | 11.1V, 2600 mAh Rechargeable Li-ion |
| Charging Time | Approx. 6 Hours |
| Dimensions | 29.8 Γ 28.0 Γ 7.8 cm |
| Weight | Approx. 1.8 kg |
Box Contents
- RMS VESTA 305i 3 Channel ECG Machine
- ECG Patient Cable
- Chest Electrodes
- Limb Electrodes
- Thermal Paper Roll
- Power Adapter
- USB Cable (Depending on Package)
- User Manual
- Warranty Card
Warranty
1-Year Manufacturer Warranty
The RMS VESTA 305i ECG Machine comes with a 1-year manufacturer warranty, ensuring reliable performance and dependable after-sales support.
Frequently Asked Questions (FAQs)
Q. Is the RMS VESTA 305i a 3-channel or 12-lead ECG machine?
A. It is a 3-channel ECG machine that records all 12 ECG leads simultaneously.
Q. Does it provide automatic ECG interpretation?
A. Yes, it includes automatic ECG interpretation with arrhythmia analysis.
Q. How many patient records can it store?
A. The machine stores up to 500 ECG records.
Q. Can ECG reports be exported as PDF?
A. Yes, ECG reports can be exported as PDF files via USB.
Q. What type of ECG paper does it use?
A. It uses standard 80 mm thermal ECG paper rolls.
Q. Is this ECG machine suitable for hospitals?
A. Yes, it is ideal for hospitals, clinics, diagnostic centres, ICUs, emergency departments, and physician practices.
Q. What warranty is included?
A. The product comes with a 1-Year Manufacturer Warranty.
