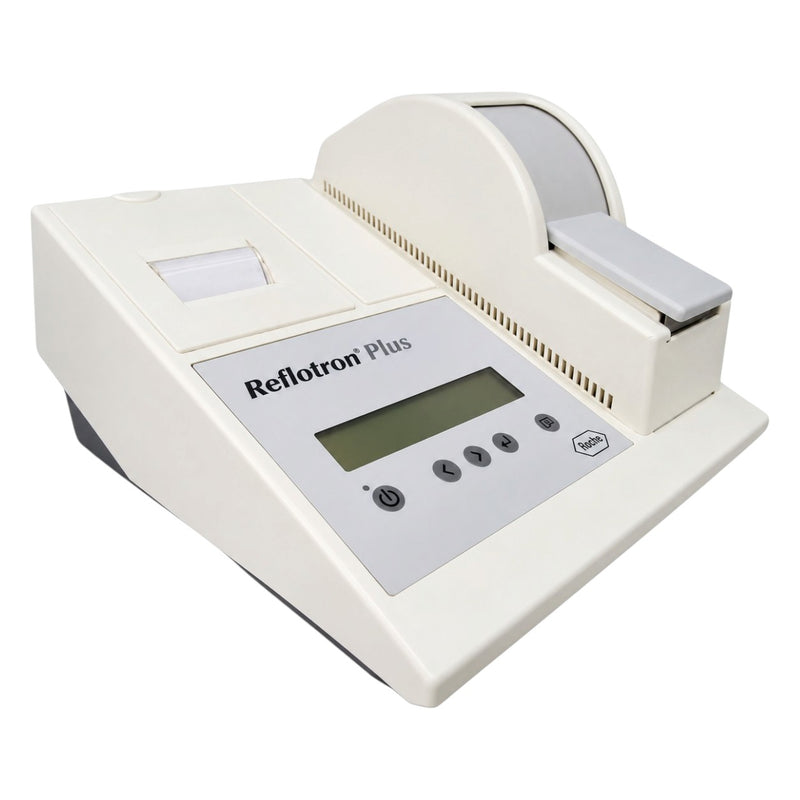

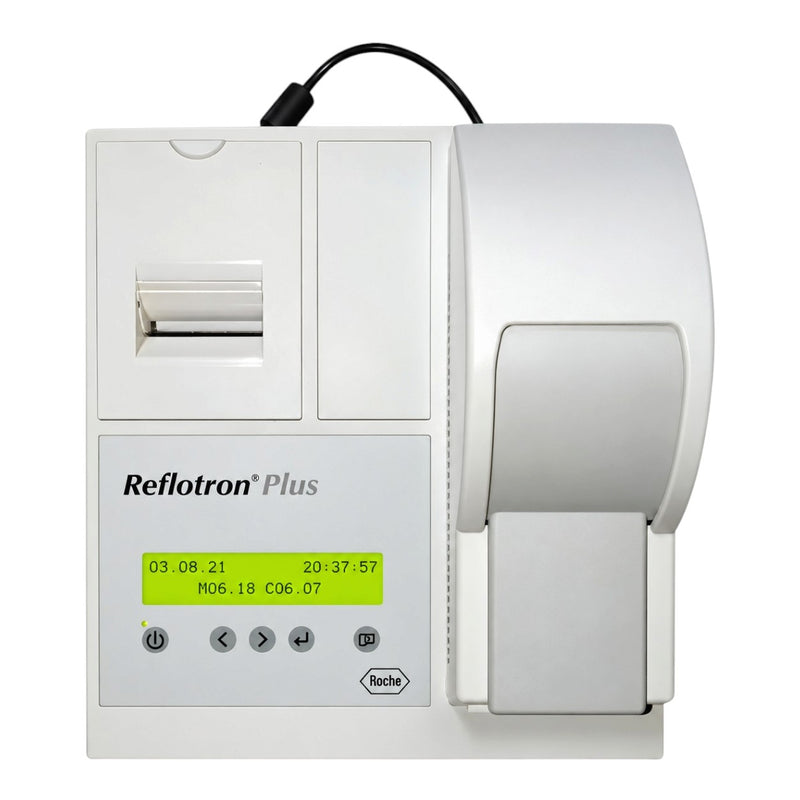

The Roche Reflotron Plus is a small and easy-to-use clinical chemistry analyzer. It uses ready-made test strips to measure different blood parameters within 2โ3 minutes. It is ideal for clinics, small labs, and point-of-care testing because it works fast, needs no calibration, and is simple to operate.
Key Highlights
-
Fast results in 2โ3 minutes
-
Very easy operation
-
Uses pre-calibrated test strips
-
No reagent preparation needed
-
Compact and lightweight (around 5.3 kg)
-
Built-in thermal printer
-
Stores up to 60 results with ID and date
-
Works with capillary blood, venous blood, serum, or plasma
-
Low maintenance
-
Good for point-of-care or small labs
Test Menu
Why Should You Buy Roche Reflotron Plus?
-
Ideal for low-volume or quick testing settings
-
Reduces waiting time for patients
-
User-friendly even for non-technical staff
-
Saves space due to compact design
-
Cost-effective because strip-based testing avoids reagent wastage
-
Reliable and long-lasting instrument
-
Good choice for mobile health camps, physician clinics, and emergency rooms
Technical Specifications
| Specification |
Details |
| Measurement Method |
Reflectance photometry |
| Sample Type |
Whole blood, serum, plasma |
| Sample Volume |
Around 30 ยตL |
| Measurement Temperature |
37ยฐC (convertible for certain tests) |
| Test Time |
2โ3 minutes per test |
| Throughput |
Approximately 18โ30 tests per hour |
| Display |
2-line alphanumeric LCD |
| Memory |
Up to 60 results |
| Data Interface |
RS-232 serial port |
| Printer |
Built-in thermal/matrix printer |
| Dimensions |
30 ร 35 ร 21 cm |
| Weight |
Approximately 5.3 kg |
| Light Source |
LED |
| Wavelengths Used |
567 nm, 642 nm, 951 nm |
| Detectors |
Photodiodes |
| Power Supply |
115โ230 V AC, 47โ63 Hz |
| Operating Temperature |
15ยฐCโ34ยฐC |
| Humidity Tolerance |
High humidity (around 90โ95%) |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
