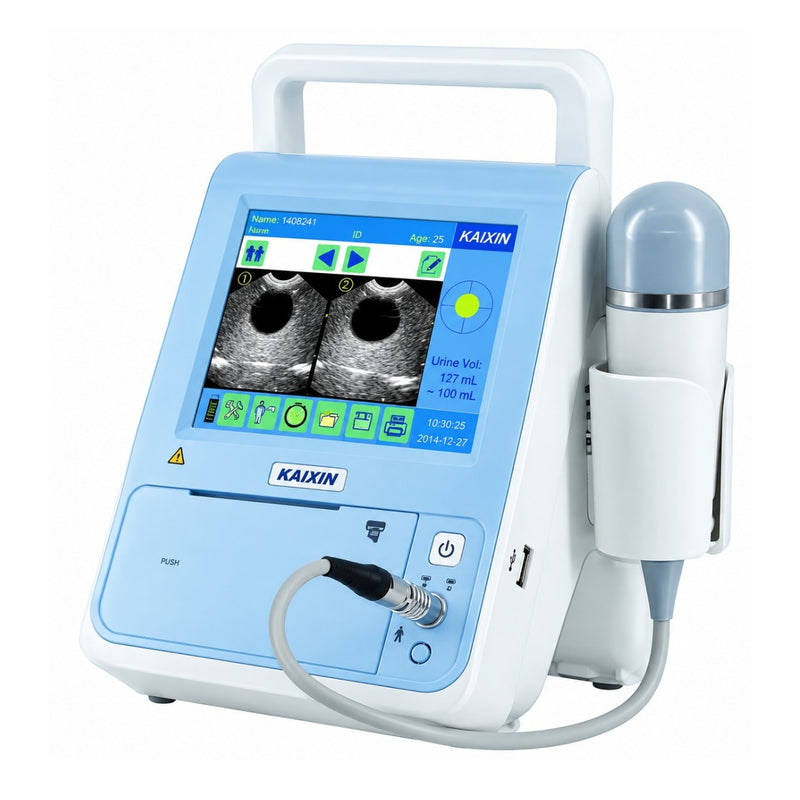

The Santron Advanced Bladder Scanner is a non-invasive ultrasound bladder scanning system designed to provide precise bladder volume measurements without invasive procedures. It combines a 2.5 MHz probe, high-resolution volume measurement, a 5.7-inch color LED touchscreen, rapid measurement, built-in thermal printing, USB support, and rechargeable battery operation.
With a measuring range of 20 ml to 999 ml, volume resolution of 1 ml, and penetration depth of up to 15 cm, the system is designed to support bladder assessment across a range of clinical environments.
✅ Key Features
- 2.5 MHz probe frequency
- 1 ml volume resolution
- Measuring range: 20–999 ml
- Penetration depth: up to 15 cm
- 5.7-inch color LED touchscreen
- Rapid measurement in under 4 seconds
- Built-in thermal printer
- USB support for data storage and software updates
- Rechargeable battery
- Up to 7 hours of continuous use
- Input power: 100–240V AC, 50/60Hz
- Operating temperature: 10°C to 40°C
- Relative humidity: 30%–75% without condensation
- IEC 60601-1-2 EMC compliance
- CE certified
Non-Invasive Bladder Volume Measurement
The Santron Advanced Bladder Scanner is designed to measure bladder volume without invasive procedures. Its ultrasound-based scanning approach provides a non-invasive method for bladder assessment.
2.5 MHz Ultrasound Probe
The scanner uses a 2.5 MHz probe with a specified penetration depth of up to 15 cm, supporting bladder scanning within the stated operating range.
1 ml Volume Resolution
The system provides a volume resolution of 1 ml, allowing bladder volume measurements to be displayed with fine volume increments.
Bladder Volume Measurement Range
The specified measuring range is:
20 ml to 999 ml
The stated accuracy varies according to the measured volume:
| Measurement Range |
Specified Accuracy |
| 20–99 ml |
±15 ml |
| 100–999 ml |
±15% |
5.7-Inch Color LED Touchscreen
The Advanced Bladder Scanner features a 5.7-inch color LED touchscreen, providing a convenient interface for operating the scanner and viewing measurement results.
Rapid Measurement
The product description states that the scanner can provide measurements in under 4 seconds, supporting a quick bladder assessment workflow.
Built-In Thermal Printer
A built-in thermal printer allows measurement results to be printed directly from the bladder scanner, supporting physical documentation of test results.
USB Connectivity
The device includes USB support for:
- Data storage
- Software updates
This provides additional flexibility for managing device data and maintaining supported software.
Rechargeable Battery
The Advanced Bladder Scanner includes a rechargeable battery with up to 7 hours of continuous use, supporting portable operation across different healthcare environments.
Operating Environment
The specified operating conditions are:
-
Ambient temperature: 10°C to 40°C
-
Relative humidity: 30%–75%
-
Humidity condition: Without condensation
Safety & Compliance
The product information states that the scanner:
- Complies with EMC test standard IEC 60601-1-2
- Is CE certified
Technical Specifications
| Specification |
Details |
| Product |
Santron Advanced Bladder Scanner |
| Probe Frequency |
2.5 MHz |
| Volume Resolution |
1 ml |
| Measuring Range |
20–999 ml |
| Penetration Depth |
Up to 15 cm |
| Accuracy: 20–99 ml |
±15 ml |
| Accuracy: 100–999 ml |
±15% |
| Display |
5.7-inch Color LED Touchscreen |
| Measurement Time |
Under 4 seconds |
| Printer |
Built-in Thermal Printer |
| USB |
Data Storage & Software Updates |
| Battery |
Rechargeable |
| Battery Runtime |
Up to 7 hours continuous use
|
| Input Power |
100–240V AC, 50/60Hz |
| Operating Temperature |
10°C to 40°C |
| Relative Humidity |
30%–75%, non-condensing |
| EMC Standard |
IEC 60601-1-2 |
| Certification |
CE Certified |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
