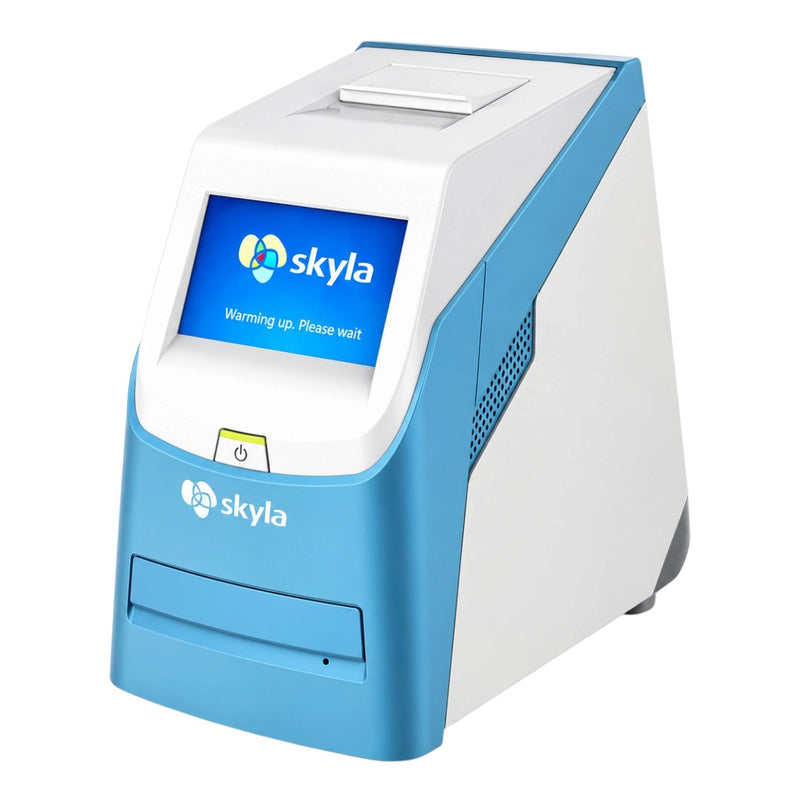

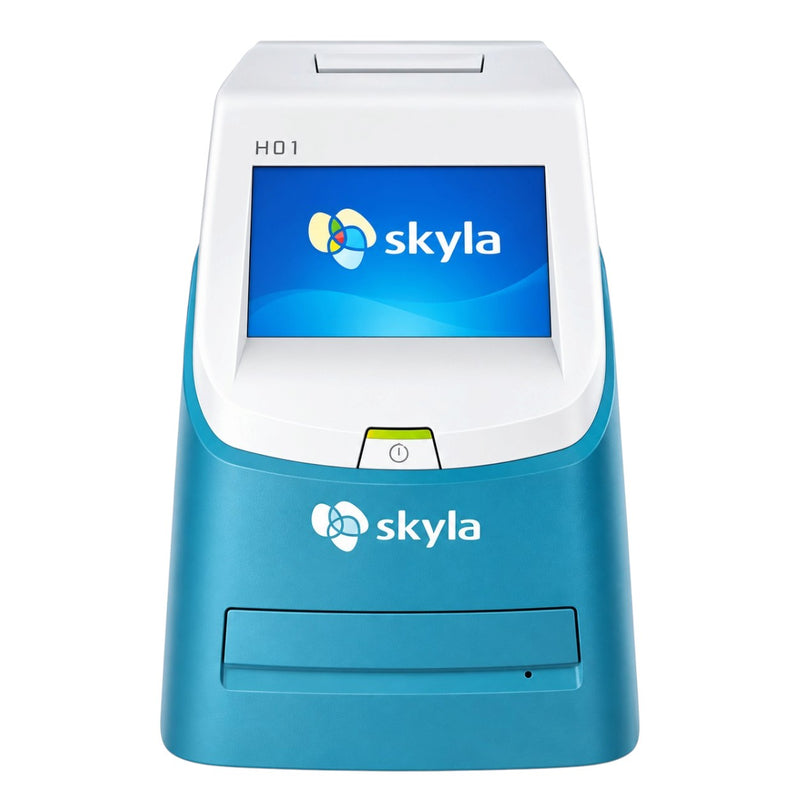

The Skyla HB1 Fully Automated Chemistry Analyzer is a compact, portable clinical chemistry analyzer designed for quick, reliable blood testing. It uses dry reagent discs and requires only a small blood sample. The system is easy to operate, fully automated, and suitable for clinics, small laboratories, and point-of-care testing locations.
Test Menu
Key Highlights
-
Fully automatic operation
-
Three-step process: load sample, start, and read
-
Built-in centrifuge for whole blood
-
Lightweight and portable design
-
Quick results in about 15 minutes
-
Internal quality control and automatic calibration
-
Low sample volume requirement of 200 µL
-
Uses single-use reagent discs
Technical Specifications
| Specification |
Details |
| Principle |
Colorimetric method |
| Wavelength Range |
LEDs 340 nm–940 nm |
| Test Profiles |
Panels |
| Measurement Time |
Up to 15 tests per panel / 15 minutes |
| Sample Type and Volume |
200 µL whole blood (PCV < 60%); plasma or serum |
| User Interface |
5-inch color LCD touch screen |
| Internal Memory |
Stores up to 50,000 analysis results |
| Printer |
Built-in thermal printer; supports external USB printer (PCL 3GUI) |
| USB Socket |
USB Type-A (Host) for external USB printer, USB flash drive (FAT), external barcode scanner |
| Data Transmission to PC |
RS232 serial port; RJ45 (LAN) |
| Dimensions (W × D × H) |
23.3 × 28.5 × 30 cm |
| Weight |
5.5 kg |
| Operating Temperature |
10°C to 32°C |
| Humidity |
5% to 90% |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
