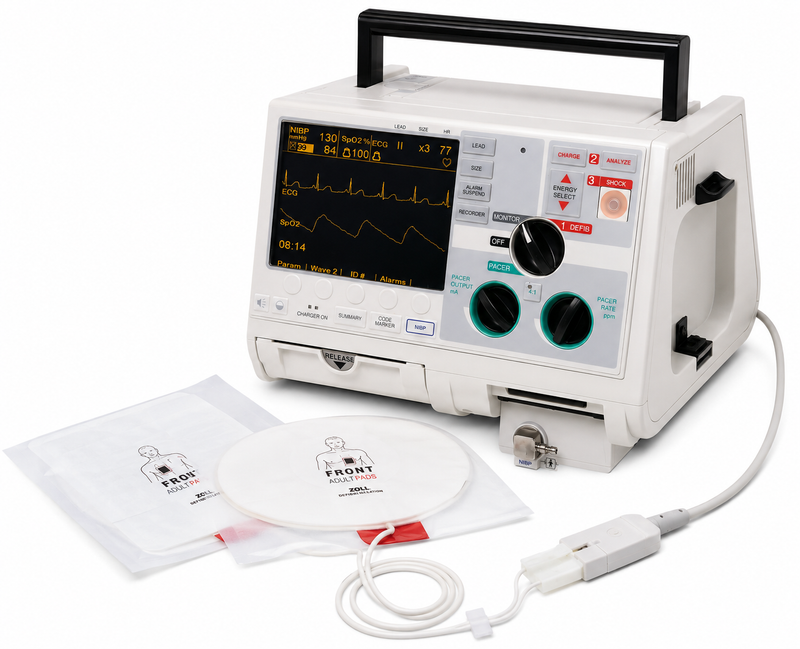

The Refurbished ZOLL M Series Monitor/Defibrillator is a compact, lightweight professional cardiac-care system that combines ECG monitoring, manual and advisory defibrillation, and non-invasive transcutaneous pacing in a single portable device.
The ZOLL M Series uses patented rectilinear biphasic waveform technology and is designed for professional applications across hospitals, emergency medical services (EMS), critical care, and patient transport.
Depending on configuration, the system supports 3-, 5-, or 12-lead ECG monitoring and can be equipped with optional vital-sign monitoring such as SpO₂, EtCO₂, and NIBP. Its integrated AC power supply and battery charger support operation in clinical and transport environments.
For event documentation and data management, the M Series incorporates internal memory and PCMCIA card slots, allowing storage and transfer of patient/event information.
As a refurbished monitor/defibrillator, the ZOLL M Series can provide a cost-effective option for healthcare facilities and EMS providers. Exact configuration, battery condition, accessories, installed monitoring options, and software should be verified for the individual unit.
✅ Key Features
- ✅ Compact Professional Monitor/Defibrillator: Combines monitoring and emergency cardiac therapies in one system.
- ✅ Lightweight Design: Approximately 5.8–7.8 kg, depending on configuration.
- ✅ Rectilinear Biphasic Waveform: Utilizes ZOLL's patented rectilinear biphasic waveform technology.
- ✅ Defibrillation: Provides biphasic energy shocks up to approximately 360J.
- ✅ Manual & Advisory Defibrillation: Supports professional manual and advisory defibrillation functions.
- ✅ Transcutaneous Pacing: Built-in non-invasive pacing capability.
- ✅ Multiple ECG Configurations: Supports 3-, 5-, or 12-lead ECG monitoring.
- ✅ Optional SpO₂: Pulse-oximetry monitoring available depending on configuration.
- ✅ Optional EtCO₂: End-tidal CO₂ monitoring available on applicable configurations.
- ✅ Optional NIBP: Non-invasive blood pressure monitoring available depending on configuration.
- ✅ Integrated AC Power Supply: Built-in AC power supply and battery-charging system.
- ✅ Internal Data Memory: Stores event and patient information.
- ✅ PCMCIA Card Support: Provides additional event documentation and data-transfer capability.
- ✅ Portable & Transport-Friendly: Designed for hospital, EMS, and critical-care transport applications.
- ✅ Refurbished & Cost-Effective: Suitable for facilities seeking professional cardiac-care equipment at a potentially lower acquisition cost.
Defibrillation & Pacing
Biphasic Defibrillation
The ZOLL M Series uses rectilinear biphasic waveform technology and provides defibrillation energy up to approximately 360 joules, depending on the specific configuration.
Manual & Advisory Defibrillation
The system combines professional manual defibrillation with an advisory mode, providing flexibility for different emergency cardiac-care workflows.
Non-Invasive Transcutaneous Pacing
An integrated transcutaneous pacing function provides non-invasive cardiac pacing capability for applicable clinical situations.
ECG Monitoring
Depending on configuration, the M Series supports:
- 3-lead ECG
- 5-lead ECG
- 12-lead ECG
Technical Specifications
| Specification |
Details |
| Product |
ZOLL M Series Monitor/Defibrillator |
| Condition |
Refurbished |
| Device Type |
Professional Monitor/Defibrillator |
| Defibrillation Technology |
Rectilinear biphasic waveform |
| Maximum Energy |
Up to approximately 360J |
| Defibrillation |
Manual & advisory |
| Pacing |
Non-invasive transcutaneous pacing |
| ECG |
3-, 5-, or 12-lead* |
| SpO₂ |
Optional/configuration dependent |
| EtCO₂ |
Optional/configuration dependent |
| NIBP |
Optional/configuration dependent |
| Weight |
Approximately 5.8–7.8 kg* |
| Power |
Integrated AC power supply |
| Battery |
Rechargeable battery system |
| Battery Charger |
Integrated |
| Internal Memory |
Yes |
| Data Storage |
PCMCIA card slots |
| Primary Applications |
Hospital, EMS, critical care transport |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
