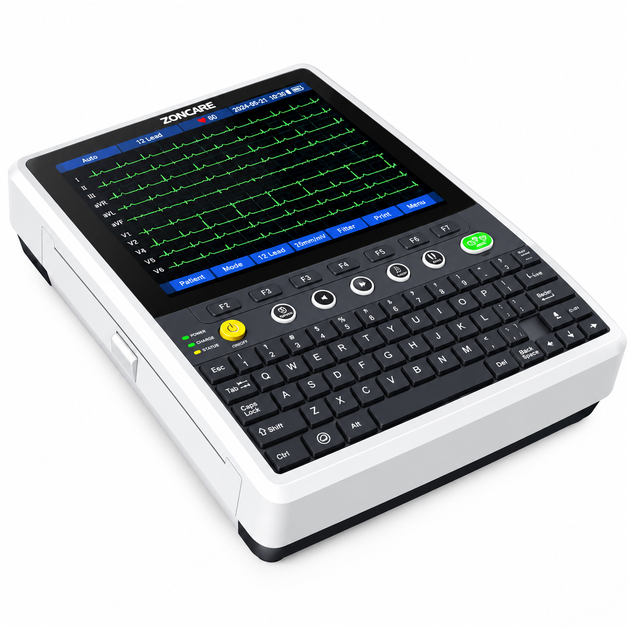

Zoncare U90 Digital 12 Channel ECG Machine
Product Selection • Best Price • Technical Support
The Zoncare U90 Digital 12 Channel ECG Machine is an advanced hospital-grade electrocardiograph engineered for accurate, real-time cardiac diagnostics in hospitals, cardiology departments, diagnostic centers, emergency rooms, and outpatient clinics. Designed with intelligent ECG analysis and high-speed data processing, it delivers reliable results while streamlining clinical workflows.
Equipped with a 9.8-inch HD color touchscreen, the Zoncare U90 provides an intuitive interface for viewing high-resolution ECG waveforms, patient information, and diagnostic reports. Its simultaneous 12-lead ECG acquisition captures comprehensive cardiac activity in real time, while the internationally recognized Glasgow ECG Algorithm automatically measures and interprets ECG data based on patient demographics and clinical parameters, assisting healthcare professionals in detecting arrhythmias, myocardial infarction, ventricular tachycardia, ventricular fibrillation, bradycardia, and other cardiac abnormalities.
Advanced digital filtering technology minimizes AC interference, muscle artifacts, and baseline drift to ensure consistently clear ECG waveforms. Multiple sampling modes—including real-time, pre-sampling, triggered, and periodic recording—offer flexibility for a wide range of clinical applications.
The built-in thermal printer supports multiple report layouts, while compatibility with external A4 laser printers provides additional reporting flexibility. With onboard storage for up to 2,000 ECG reports, support for PDF, XML, DICOM, PNG, HL7, and JPG file formats, and LAN, wireless networking, USB, and SD card connectivity, the Zoncare U90 integrates seamlessly with Hospital Information Systems (HIS) and Electronic Medical Records (EMR).
Powered by a high-capacity 14.52V lithium battery, the U90 delivers up to 10.5 hours of continuous operation, making it ideal for bedside monitoring, mobile healthcare, emergency response, and outreach programs. Compact, lightweight, and equipped with built-in defibrillator protection, the Zoncare U90 offers dependable performance for modern cardiac diagnostics.

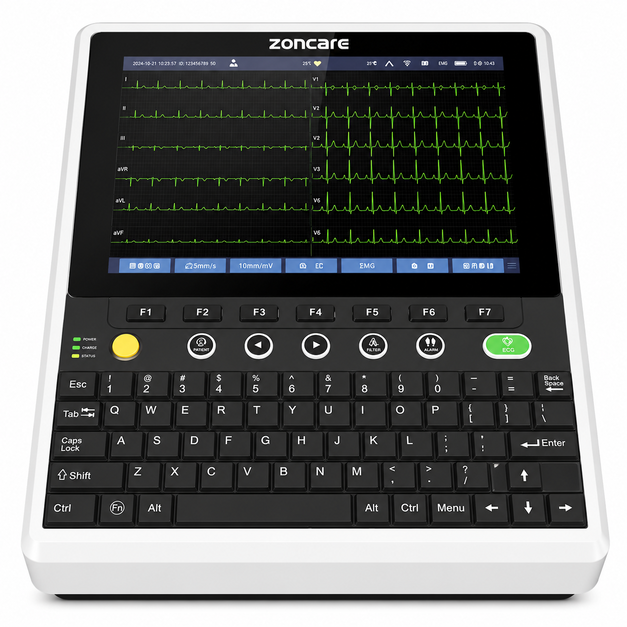

Compact Zoncare U90 digital ECG machine for bedside, emergency, and mobile cardiac diagnostics
Product Highlights
- Simultaneous 12-lead ECG acquisition
- 9.8-inch HD color touchscreen display
- Advanced Glasgow ECG automatic interpretation
- Real-time, triggered, pre-sampling, and periodic recording modes
- Built-in thermal printer with multiple report layouts
- HIS and EMR integration with LAN and wireless connectivity
- Storage for up to 2,000 ECG reports
- USB, SD card, and external printer support
- Built-in defibrillator protection and pacemaker detection
- Rechargeable lithium battery with up to 10.5 hours of continuous operation
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name | Zoncare U90 Digital 12 Channel ECG Machine |
| Lead System | Simultaneous 12-Lead Acquisition |
| Display | 9.8-inch HD Color LCD Touchscreen |
| Printer | Built-in Thermal Array Printer |
| Print Layouts | 3×4, 3×4+1, 3×4+3, 6×2, 6×2+1, 12×1, 6×2+3 |
| Paper Type | Z-Fold Paper (210/216 × 140 mm) |
| Paper Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s |
| Recording Modes | Manual, Auto, Rhythm |
| Sampling Modes | Real-Time, Pre-Sampling, Triggered, Periodic |
| Sampling Rate | 32 kHz |
| Sensitivity | 2.5, 5, 10, 20, 40, Auto mm/mV |
| Frequency Response | 0.01–350 Hz |
| CMRR | ≥115 dB |
| A/D Resolution | 24-bit |
| Filters | AC, EMG, DFT |
| Heart Rate Range | 30–350 bpm |
| Storage | 1,500–2,000 ECG Reports + SD Card/USB |
| File Formats | PDF, XML, JPG, PNG, DICOM, HL7, ZQECG, GDT |
| Connectivity | LAN, Wireless Network, USB 2.0, SD Card |
| Peripheral Support | Keyboard, Mouse, Scanner, Card Reader, Printer |
| Battery | 14.52V / 5200mAh Lithium Battery |
| Battery Backup | Up to 10.5 Hours |
| Charging Time | 90% ≤3 Hours, Full Charge ≤3.5 Hours |
| Power Supply | AC 100–240V, 50/60Hz |
| Dimensions | 43.5 × 33.5 × 9.8 cm |
| Weight | 3.6 kg (with Battery) |
Box Contents
- 1 × Zoncare U90 Digital 12 Channel ECG Machine
- 1 × Patient Cable
- 1 × Lead Wire Set
- 4 × Limb Electrodes
- 6 × Chest Electrodes
- 1 × Thermal Recording Paper
- 1 × Power Cord
- 1 × Grounding Wire
- 1 × User Manual
- 1 × Quick Operation Guide
- 1 × Guarantee Card
Warranty
1 Year Manufacturer Warranty covering manufacturing defects, as per Zoncare's standard warranty terms and service policy.
